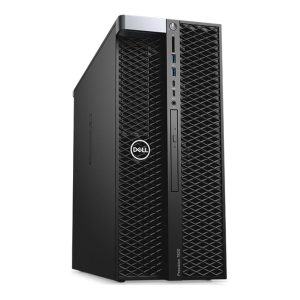

Custom Configure Your Own Dell Precision T7820 Workstation

Push your ideas beyond boundaries with the Precision 7820 Workstation! Featuring a dual-socket architecture for maximum performance in a compact design. The latest Intel Xeon processor Scalable Family powers your most demanding applications. The Dell T7820 Workstation is a great choice for complex projects with the next generation AMD Radeon Pro and highest-performing NVIDIA Quadro graphics. Use our custom configurator to choose your specs and get an instant Dell 7820 Workstation price. Still not sure? Check out The Dell Precision 7820 review below. Buy a Dell Workstation today!

Ships Within 24-72 Hours

In Stock

    • 287 $
    • 574 $
    • 0 $
    • 0 $
    • 0 $
    • 0 $
    • 0 $
    • 0 $
    • $
Free Ground Shipping Within the Continental USA.

Additional information

Brand

Dell

Workstation Model

Dell Precision T7820 Tower Workstation

Condition

Manufacturer Refurbished Workstation

Drive Bays

6 x 2.5" Inches Drive Bays

Processor (CPU)

One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel
Advanced Vector Extensions, ntel Trusted Execution Technology, Intel AES New instructions, Optimized
Intel Turbo Boost and optional Intel vPro technology

Memory

8GB RAM, 16GB RAM, 32GB RAM, 64GB RAM, 128GB RAM, 256GB RAM, 384GB RAM

Six channel memory up to 384GB 2666MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots
(6 DIMMs per CPU).

Note: memory speed is dependent on specific Intel Xeon Processor Scalable processor installed

Hard Drives

Up to six 2.5" or five 3.5" drives and front access storage including SATA, SAS and PCIe M.2/U.2 NVMe SSD can be configured for up to 28TB total storage and easily swapped. With the hot-swap feature on the U.2 and M.2 PCIe NVMe SSDs, you can remove drives without shutting down the workstation.

Graphics Cards

High end 3D cards:
– Radeon Pro WX 9100 Graphics Card
– Radeon Pro SSG Graphics Card
– NVIDIA Quadro GP100 Graphics Card
– NVIDIA Quadro P6000 Graphics Card
– NVIDIA Quadro P5000 Graphics Card
Mid-range 3D cards:
– Radeon Pro WX 7100 Graphics Card
– Radeon Pro WX 5100 Graphics Card
– Radeon Pro WX 4100 Graphics Card
– NVIDIA Quadro P4000 Graphics Card
– NVIDIA Quadro P2000 Graphics Card
Entry 3D cards:
– Radeon Pro WX 3100 Graphics Card
– Radeon Pro WX 2100 Graphics Card
– NVIDIA Quadro P1000 Graphics Card
– NVIDIA Quadro P600 Graphics Card
– NVIDIA Quadro P400 Graphics Card
Professional 2D cards:
– NVIDIA NVS 310 Graphics Card
– NVIDIA NVS 315 Graphics Card

– Support for 2 PCI Express x16 Gen 3 graphics cards – up to 500W with maximum of 2 x 250W double width graphics cards on single CPU configurations. Up to 2 x 150W single width graphics cards on dual CPU configurations

RAID Controller

Intel® chipset SATA controller (6Gb/s) with 6 SATA ports

Network Controller

Intel® i219 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support

Power Supply

Single 950W PSU

Storage Options

– Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
– Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
– NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
– Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC)

M.2 NVMe PCIe SSDs
– Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs
– Up to 2 x 1TB drives
2.5” SATA SSD
– Up to 6 x 1TB drives
2.5” SAS SSD
– Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
– Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s
– Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s
– Up to 6x 900GB (future)
2.5” Self Encrypting Drives
– 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
– 512GB and 1TB Intel

Ports and Slots

– Power button/Power light
– Drive activity light
– SD card slot
– USB 3.0 ports
– USB 3.0 Type-C port with PowerShare
– USB 3.0 Type-C port
– Headset port
– 5.25 inch bay (optional)
– Optical drive
– Drive access release latch
– Drive carriers
– Microphone/Line-in port
– PS/2 Mouse port
– USB 3.0 ports
– Discrete graphics card slot (optional)
– Padlock ring
– Security cable slot
– Power cable connector
– Line-out port
– Serial port
– PS/2 Keyboard port
– Network port
– USB 3.0 port (supports smart Power-On)
– Expansion card slots

Expansion Options

1 – USB 2.0 1 – 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) 8 – SATA @6Gb/s

Supported Operating Systems

– Windows 10 Pro for Workstations (up to 4 Cores)
– Windows 10 Pro for Workstations (4 Cores Plus)
– Windows 10 Pro for Workstations Downgrade to Windows 7 (up to 4 Cores)
– Windows 10 Pro for Workstations Downgrade to Windows 7 (4 Cores Plus)
– Red Hat Enterprise Linux 7.3
– Ubuntu Linux 16.04
– Suse Linux (SLES 12 SP2) supported
– NeoKylin 6.0 SP3 (China only)

Warranty

5 Year VRLA Tech Warranty

Dell Precision 7820 Specs

https://www.vrlatech.com/ProductMaterials/DellT7820Specs.pdf

Dell 7820 Manual

https://www.vrlatech.com/ProductMaterials/DellT7820OwnersManual.pdf

Dell 7820 PDF

https://www.vrlatech.com/ProductMaterials/WhyChooseDellPrecision.pdf

Dell Precision T7820 Avid Guidelines

https://www.vrlatech.com/ProductMaterials/DellT7820AvidConfigurationGuidelines.pdf

*The Dell Precision Optimizer takes the guesswork out of customizing settings and automatically tunes your workstation to run the most popular applications at the fastest speeds possible.

Dell T7820 Quick Start Guide

https://www.vrlatech.com/ProductMaterials/DellT7820QuickStartGuide.pdf
